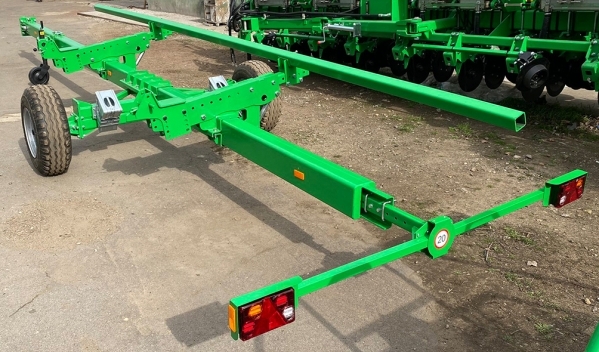

The multi-purpose header trailer is an agricultural machine designed to be transported across the field or on public roads in accordance with the current traffic regulations.

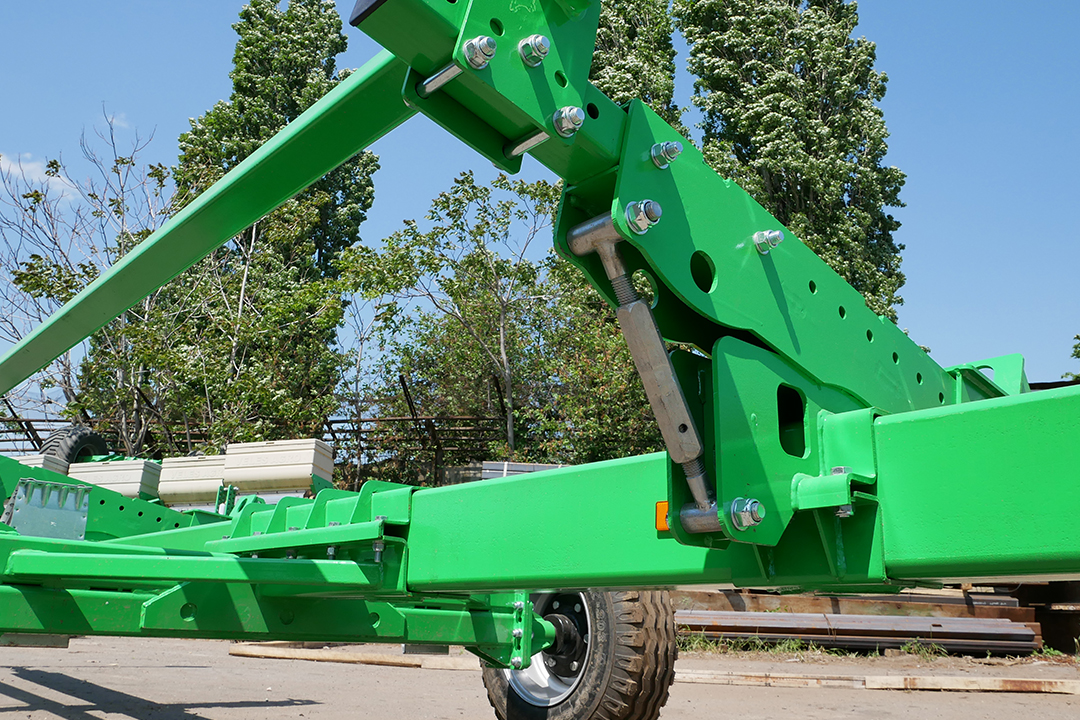

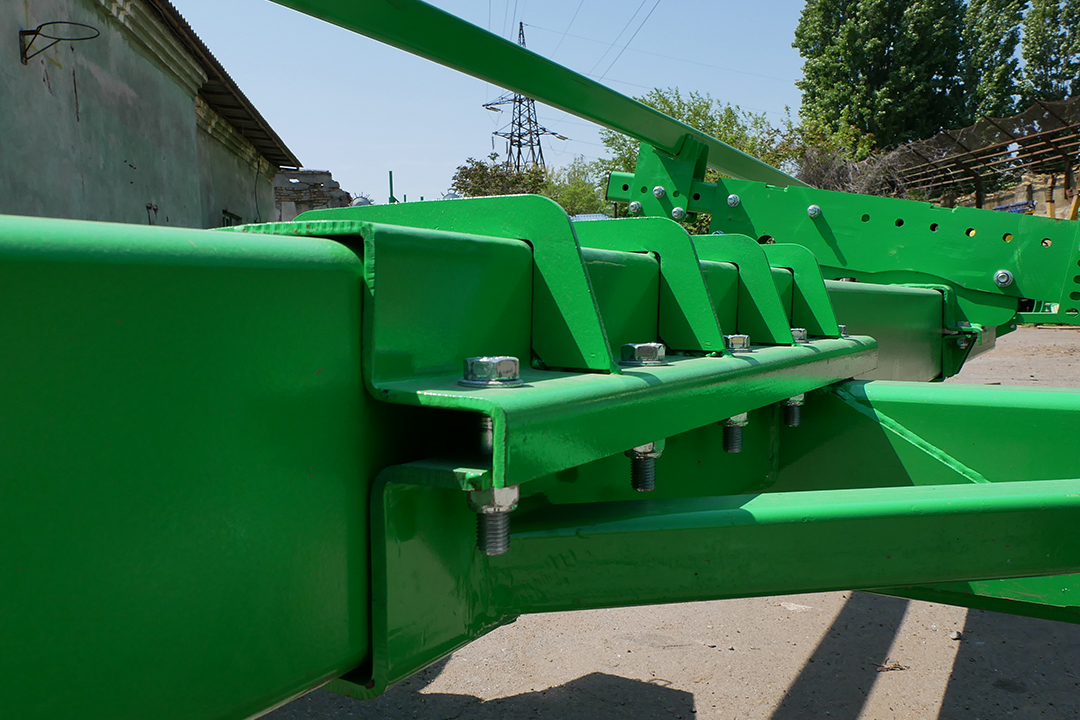

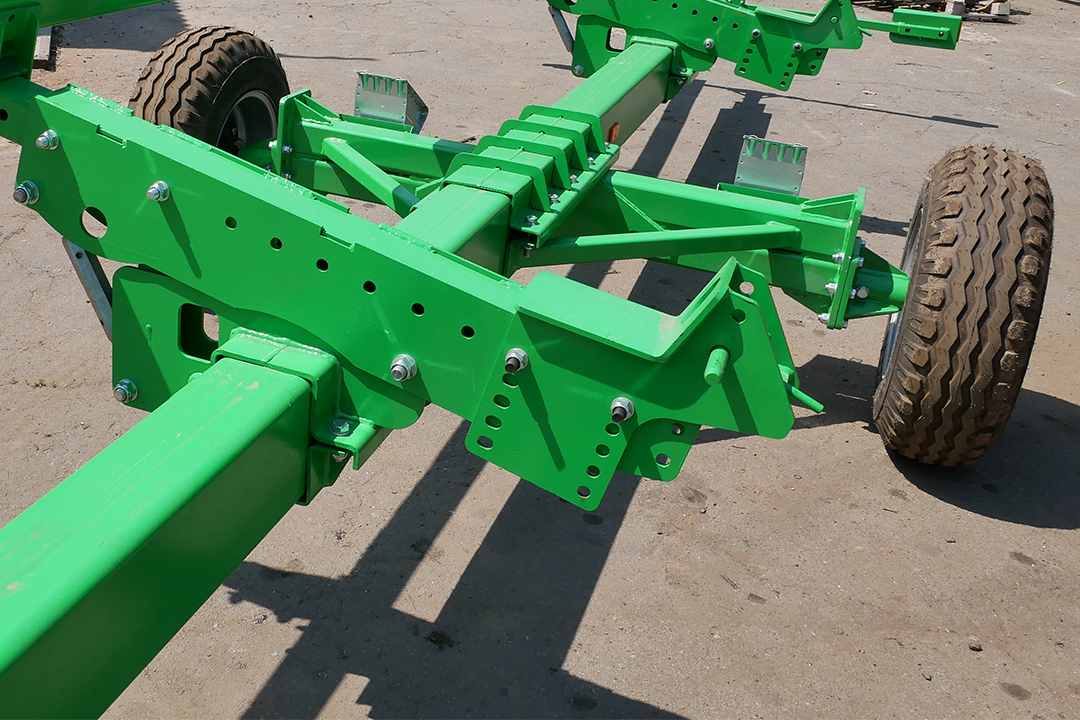

The harvester is loaded onto the trolley using a combine harvester and fixed on the trolley using transport fasteners. Lodgments are installed on each support, which are designed to catch the rear lower beam of the header, and a support pipe is installed through all the supports, on which the harvester’s crop lifters rest. For various designs of headers, adjustment is provided across the beam of the lodgements and the support tube, as well as the angle of inclination of the support. In addition, it is possible to adjust the distance of the supports along the bogie beam.

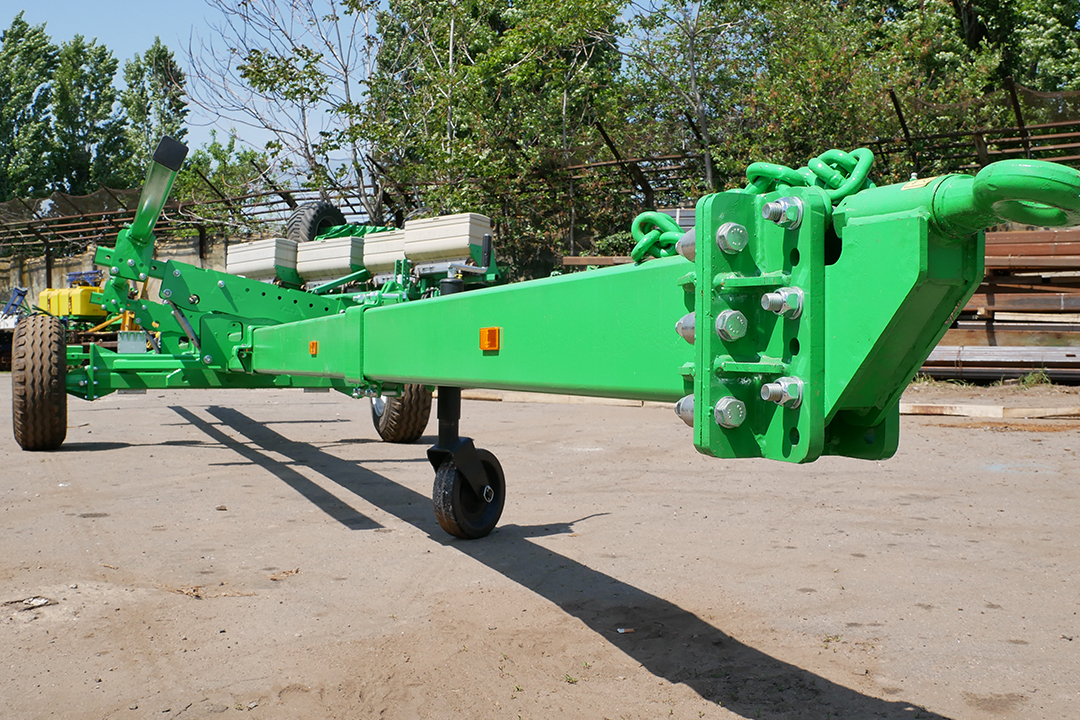

When moving on public roads, depending on the current traffic regulations, the trolley can be hitched to the hitch of a combine harvester, tractor or tractor and move along with it.
