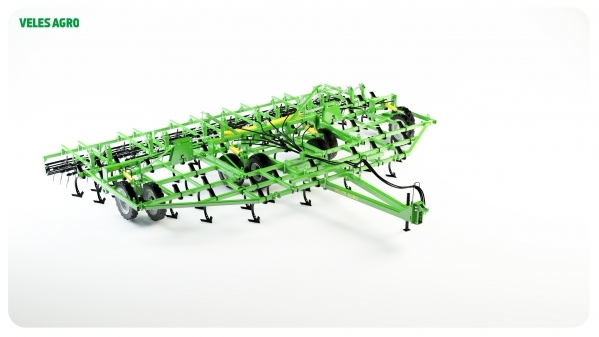

KPG 8.2 Cultivator (5-row) is designed for continuous tillage and processing vapors with simultaneous harrowing and stitching, soil resistivity to 0.5 kgf / cm ² (0,05 MPa) and the humidity to 27%.
For aggregation, it is recommended to use the tractor drawbar category — 3.0

On customer request the cultivator can be supplied with different sweeps from 180 to 330 mm, thus changing the number of workers of the unit. By placing the working bodies of the 5 series is a uniform passage even stemmed residue without plugging the unit.

Working body, analogue of John Deere, 11111111111111111111111111 Working body with an S-shaped rack of Eurozappa

For leveling the surface of the field, a spring comb with adjustable angle of teeth attack is located behind the working bodies. The final crushing blocks of land and surface leveling field is carried by a tubular roller. If necessary, the specified functions of KPG 8.2 are easy to disassemble completely or partially (comb or roller).

Cultivator comb with roller:

Depth processing is regulated by limiters stroke cylinders of simply rearranged adjusting thrust rings. Required power for tiller depends on the type and soil moisture, forms cultivator paws amount of crop residue on the surface of the field, tillage depth, operating speed and many other factors. The needed power may be at least 20 — 27 liters. s. per meter width of the cultivator.
The mass of the cultivator with spring struts, spring harrows and packer wheel.
