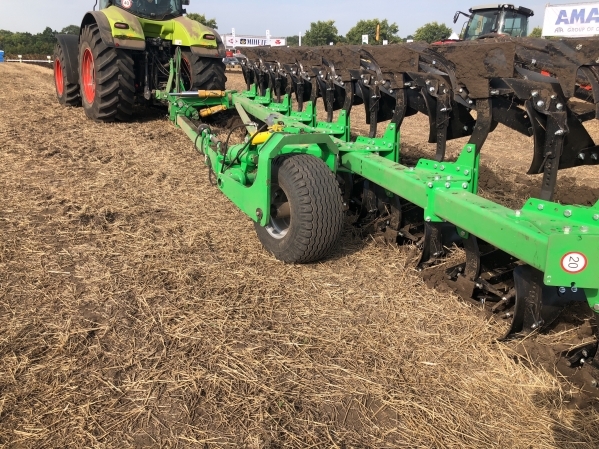

PON 7‒40+1Semi-mounted reversible plough is intended for tillage of soils for grain and industrial crops to a depth of 18 to 35 cm, without stones, fieldstone and other obstacles, with a resistivity of the soil to 0.09 MPa and a hardness of up to 3.5 MPa. (furrow).

Semi-mounted reversible plow consists of a frame together with the mechanism of the coup, housings (right and left), the mechanism of the rear support wheels, drawbar with a tower.

— plow is on the main beam five right and five left-wing buildings;
— each case is made with a band blade.

The working body of the plow:

The frame is the basic bearing element and serves for the installation of assembly units. Consists of a square cross-section beams which are pivotally attached to each other. On either side of the main beam of the frame hingedly connected to the rotary blade and the carrier beam. The main bar is also equipped with a diagonal emphasis connecting the main beam and rear pivot beam. From the side, which is adjacent to the tractor drawbar assembly securely fastening (tower), and on the opposite side — the mechanism of supporting wheels and two wheels, contains 7 double hulls.

Its design features allow you to have a number of advantages:

• Maneuverability: at maximum capacity provides quick U-turn on a narrow headland.
• The ability to easily change the widths of the working body (33, 38, 44 and 50 cm for each case).
• The high strength of the plow — a pledge many years of service of the unit.
• Plough quality processes edge field, as well as places along ditches and fences.
• The possibility to transport the plow at high speed without causing the load on the tractor hitch.
• High wear resistance of production workers «Veles-Agro» provides cost savings on plowing.
• width from 165 to 400 cm (the number of buildings from 5 to 8);

Proposed plow, whose appearance is declared fit for use for smooth plowing soil for grain and industrial crops to a depth of 35 cm.
